Imranics New DSP KIT X10

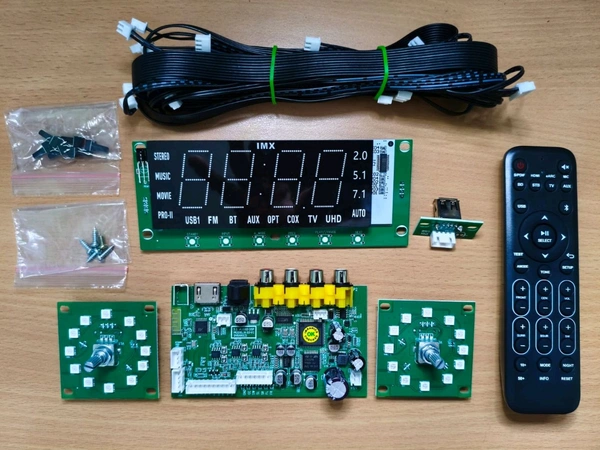

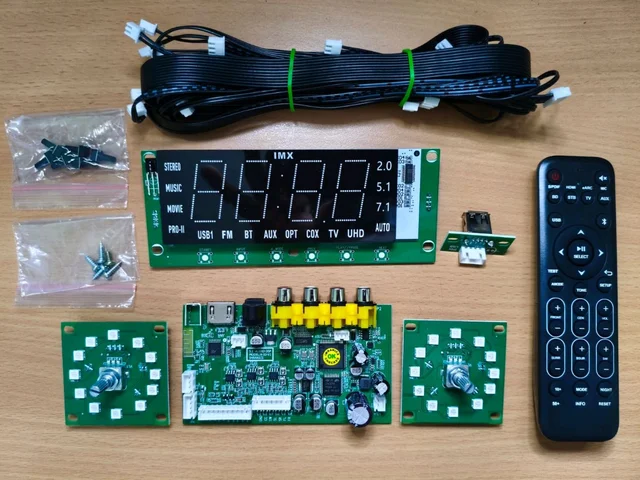

Imranics This is the IMRANICS X10 5.1 DSP Audio Remote Kit, a complete digital audio processor and decoder board for building a 5.1 home theater amplifier.

Main Features

5.1 Channel DSP Processing

Front Left (FL)

Front Right (FR)

Center (C)

Surround Left (SL)

Surround Right (SR)

Subwoofer (SW)

Audio Inputs

HDMI ARC (CEC supported)

Optical (Toslink)

Coaxial

AUX Analog Input

USB (MP3/WAV/FLAC)

Bluetooth 6.0

FM Radio

DSP Modes

Stereo 2.1

Music 5.1

Movie 5.1

Dolby Pro-Logic II

Tone Controls

Individual Bass/Treble adjustment

Channel gain adjustment

Subwoofer level control

Tone bypass mode

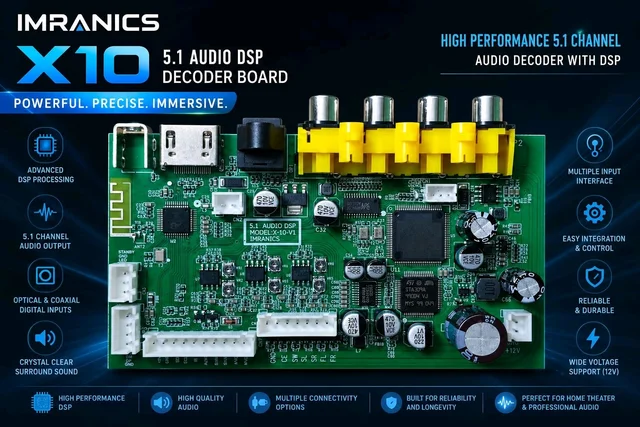

Audio ICs

STA309A DSP Processor

Handles digital audio processing

Surround sound decoding

Tone control and effects

Cirrus Logic DAC

24-bit / 192 kHz audio conversion

Converts digital audio to analog 6-channel output

Outputs

6-channel analog audio outputs:

FL

FR

Center

SL

SR

Subwoofer

Display & Control

Large LED display

Dual RGB rotary encoders

IR remote control

Source selection via remote or encoder

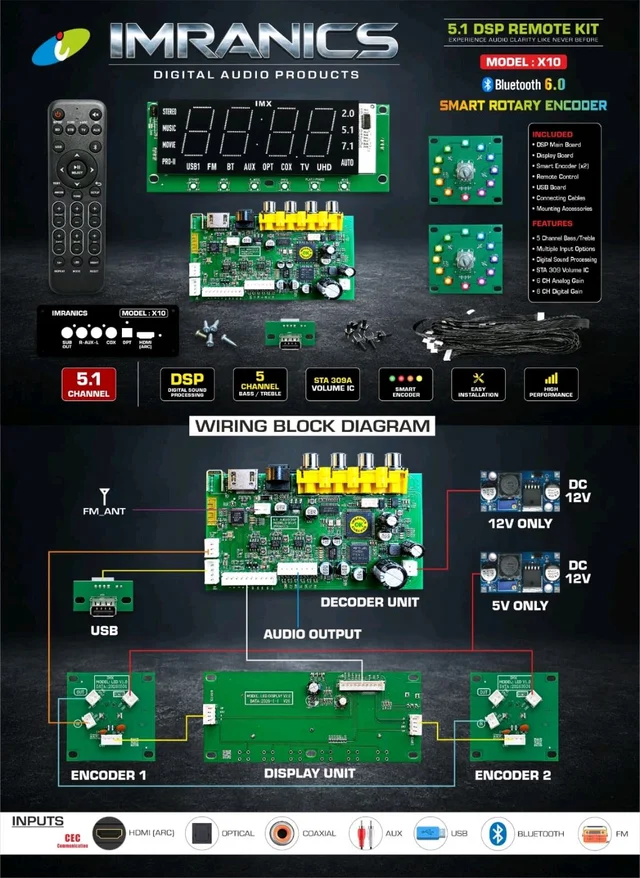

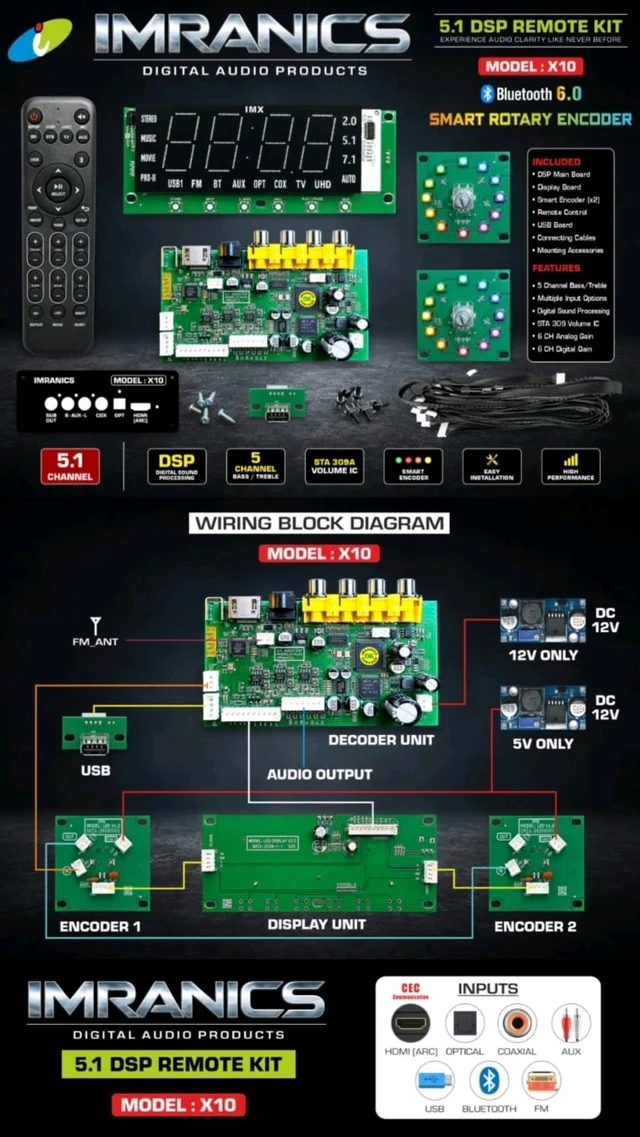

Power Supply

The board operates from:

12V DC

Separate regulator modules are used internally for 5V and other voltages.

Suitable For

✅ 5.1 Home Theater Amplifier

✅ DIY Surround Sound System

✅ Active Speaker Projects

✅ Car/Home DSP Audio Projects

Advantages

HDMI ARC support

Bluetooth music streaming

FLAC playback via USB

Individual channel calibration

Easy integration with 5-channel + subwoofer amplifier boards

Limitation

It is a DSP decoder/preamp only.

You still need:

5-channel power amplifier

Subwoofer amplifier

Suitable SMPS or transformer power supply

Speaker system

For your Denx Audio 5.1 amplifier project, this X10 kit is a good low-cost solution because it already provides HDMI ARC, Bluetooth, USB, DSP processing, and remote control in a single board.
